BulletCAT4-GL

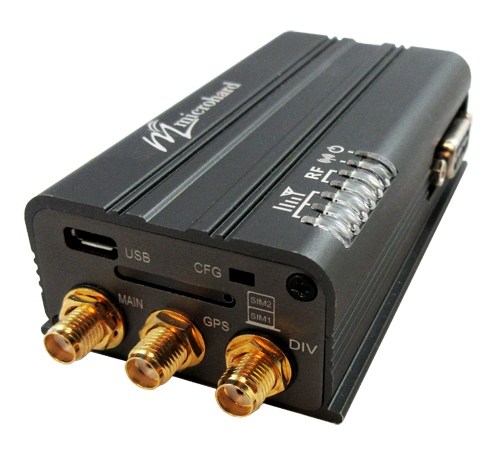

BulletCAT4-GL - 150 Mbps CAT4 LTE Ethernet/Serial Gateway

The BulletCAT4-GL provides a feature packed, compact industrial strength wireless solution using robust LTE CAT4 technology for critical data communications. This Bullet provides Global Band Support with fallback and fast CAT4 LTE connections with speeds of up to 150 Mbps for today's data intensive applications.

Features

  • Fast CAT4 LTE Operation
  • Up to 150 Mbps DL / 50 Mbps UL
  • Global Band Support w/Fallback
  • Dual SIM Support w/Failover
  • Gigabit Ethernet w/PoE
  • Full IPv6 & IPv4 Support
  • RS232/485 Serial Data Port
  • Programmable Analog/Digital Inputs
  • Digital Outputs
  • Enhanced Port Forwarding, DMZ
  • Wide Operating Temp (-40C to +85C)
  • Quad Constellation GPS
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts (SMS/Email)
  • IPSec w/IKEv1 & IKEv2 support
  • Multiple Tunnel Support (16)
  • L2TP, Open VPN, Site-to-Site Tunneling
  • GRE Tunnel Support
  • Firewall with ACL Security
  • Configurable via SSH, HTTPS Web Interface
  • Microhard NMS Integration
  • Local/Remote firmware upgradable

Applications

  • IP/Ethernet Wireless Extension
  • Legacy Networks/Device Migration
  • Remote Access, VPN
  • SCADA (PLCs, RTUs, Modbus)
  • Cellular Backbone
  • Point of Sale Systems
  • Mobile Internet Access
  • Electric, Oil & Gas Utilities/Metering

Approvals

  • FCC, ISED (Industry Canada)
  • PTCRB
  • CE
  • EN301908-1, EN301908-2,
    EN301908-13, EN303413,
    EN301489-1, EN301489-52,
    EN62311, EN55032,
    EN55035, EN62368
  • RoHS Compliant
  • UL HazLoc (C1D2)
  • RCM: Australia & New Zealand
  • Carrier Specific Approvals:
    Verizon, Rogers

BulletCAT4-GL

Order Information

Model Part Number
BulletCAT4-GL MHK117710
BulletCAT4-GL w/Kit MHK117712
