pX2LTE-4GL - OEM Ethernet/Serial WIFI Router with LTE

The pX2LTE-4GL combines our powerful pX2 WiFi router/gateway and a robust LTE Connection into a single compact OEM package. The LTE Connection provides a wide selection of globally supported LTE bands, features 3G/HSPA Fallback and can deliver up to 150 Mbps of download speeds. The embedded pX2 provides high power (1W), wide range, fast 802.11n WiFi access for remote devices to connect. The pX2LTE-4GL features Dual Ethernet Ports, Dual RS232, USB and GPS capabilities.

Features

  • High Power WiFi (up to 1W)
  • 802.11b/g/n WiFi, up to 150 Mbps
  • 150 Mbps (DL) 4G/LTE
  • Global LTE Band Support
  • Full Scale Access Point, AP Station, Repeater
  • Dual 10/100 Ethernet Ports
  • Serial Gateway (RS232)
  • Industrial Temperature (-55C to +85C)
  • Adjustable Transmit Power
  • Miniature Size (1.6"x2.25"x0.35")
  • Only 30 grams!
  • FCC/IC Approved

Applications

  • IoT Applications
  • WiFi Router
  • Remote Telemetry
  • Electric, Oil, and Gas Sensors/Detection
  • Display Signs
  • Industrial Applications

Images

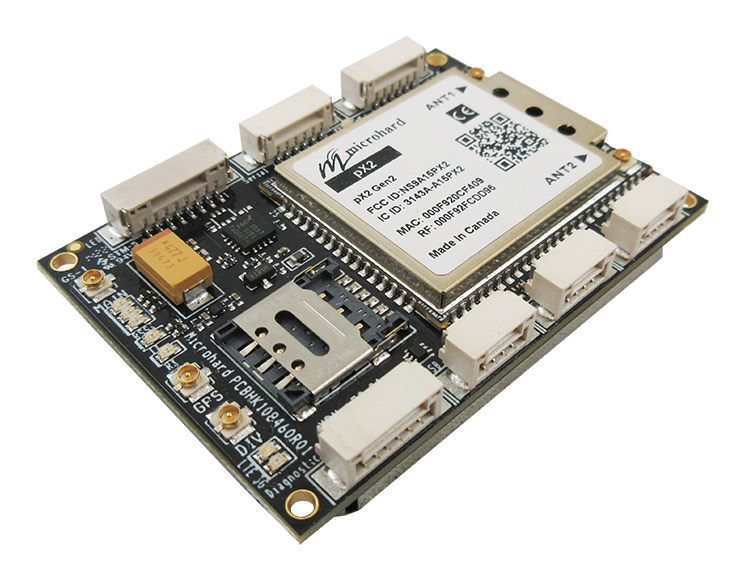

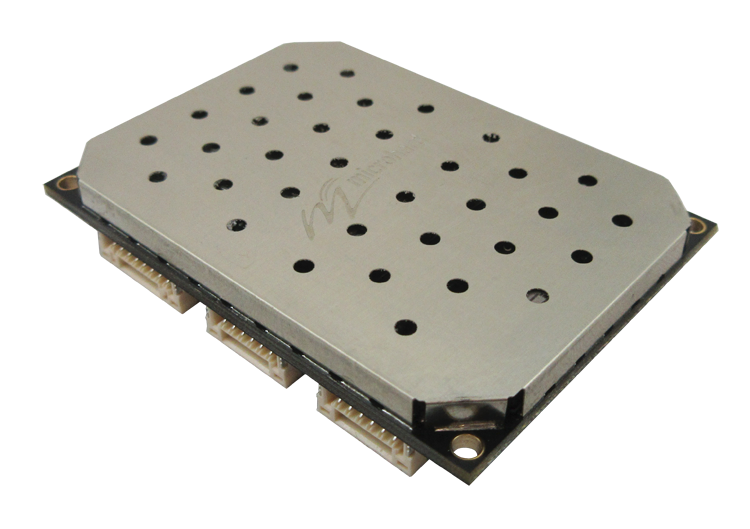

Microhard: pX2LTE Microhard: pX2LTE



pX2LTE Order Options

Model P/N
pX2LTE-4GL MHK186200
