pMDDL2450 | Dev Kit | Accessories | Downloads

pMDDL2450 - Wireless MIMO (2X2) OEM Digital Data Link

MIMO performance provides multipath immunity resulting in fast & consistent throughput at impressive distances!

The all new Pico MIMO Digital Data Link is a miniature OEM, high power, 2X2 MIMO 2.4GHz wirless OEM solution that provides the bandwidth and range needed for complex data intensive applications. The Pico MIMO DDL features 2X2 MIMO, using Maximal Ratio Combining (MRC), Maximal Likelihood (ML) decoding and Low-Density Parity Check (LDPC) to achieve robust RF performance.

The miniature, lightweight and robust design allows the pMDDL to be an ideal candidate for size sensitive applications. The high speed, long range capabilities of the pMDDL allow for high quality wireless video and telemetry communications.

Features

  • Data Rates > 25 Mbps!
  • 2X2 MIMO
  • Adjustable Total Output Power (1W)
  • Maximal Ratio Combining (MRC), Maximal Likelihood (ML) decoding
  • Low-Density Parity Check (LDPC)
  • Extremely Small Footprint
  • Very Lightweight
  • Point-to-Point, Point-to-Multipoint
  • Master, Remote, Relay (Future) Modes
  • Low Power Consumption
  • Simultaneous IP & Serial Data
  • Dual Ethernet Ports (LAN/WAN)
  • Port Forwarding, ACL, Firewall
  • Extended Temp (-40C to +85C)
  • 128-bit AES Encryption
  • Configurable via local console, telnet, web browser
  • Local/Remote firmware upgrades

Applications

  • Ethernet Wireless Extension
  • Wireless Telemetry
  • Wireless Video
  • Wireless Control Systems

Approvals

  • FCC
  • Industry Canada

Images

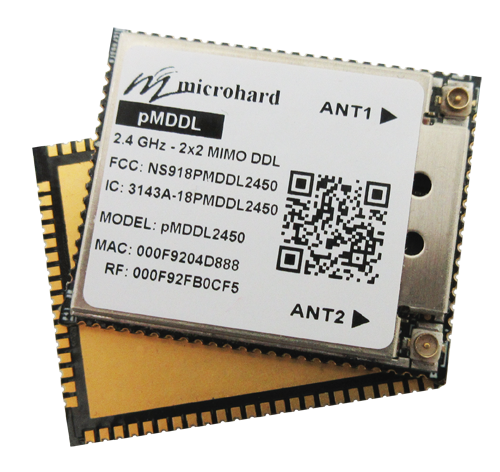

Microhard: pMDDL2450
Microhard: pMDDL2450
