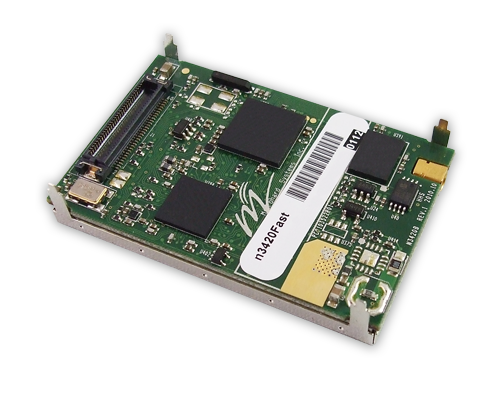

n3420 - Miniature 3.4 GHz Spread Spectrum Wireless Modem

Operating in the 3.3 - 3.5 GHz range, the n3420 offers robust, high speed, low latency, secure data communication at speeds up to 230 kbps. The n3420 modem has an incredibly small footprint offering outstanding design flexibility; but that's not all it has to offer. Engineered into this tiny package is the reliability, features, and performance of our larger serial modems!

The Nano n3420 is available in OEM, Enclosed, and Motherboard formats. A n3420 development kit is also available which allows for evaluation and testing of a pair of n3420 modems. Use the tabs above to view the different ordering options.

Features

  • Supports up to 230 kbps
  • Quad Filter Stages provides Extreme Noise
    and Interference Rejection
  • Supports a variety of network topologies as well as store-and-forward repeater operation
  • User-adjustable from 100mW-1W transmit power
  • Low power consumption in Sleep and Sniff modes
  • Very Small Footprint
  • Wide Temperature Specification
  • Selectable Forward Error Correction (FEC), 32 bits of CRC, and 128/256-bit AES (export restrictions apply)

Applications

  • Licensed Band SCADA
  • WiMAX Band Operation
  • GPS Vehicle Data/Tracking, DGPS
  • Robotics
  • Remote Control, Telemetry
  • Industrial Communications

*This is not FCC approved. It is for demonstration purpose only, not for sale. This equipment is subject to FCC rules and will comply with the appropriate rules before delivery to the buyer.
