pMDDL2460-ENC
pMDDL2460 | -SWP | -ENC | Accessories | Support

Miniature Enclosed Dual Frequency 2.4 & 5-6 GHz OEM Digital Data Link

The pMDDL2460-ENC is a miniature enclosed, 2.4 GHz and 5-6 GHz long range wireless modem. The pMDDL2460-ENC delivers a ready to deploy solution that provides standard connectors for a quick interface to power,antennas and end devices. The modem features OFDMA using 2 Transmit and 4 Receive Antenna's. The pMDDL2460-ENC is capable of long range wireless data transmission.

The robust design, integrated cooling, and standard interfaces makes the pMDDL2460-ENC an ideal candidate for base stations and standalone applications. The high speed, long range capabilities of the pMDDL2460-ENC allow for high quality wireless video and telemetry communications.

Features

  • Data Rates > 100 Mbps!
  • 2.4 & 5-6 GHz Software Selectable Operation
  • Selectable Channel Bandwidth
    (40|20|10|8|5|4 MHz)
  • 2X4 MIMO
  • 2x TX Antenna | 4x RX Antenna
  • Adjustable Output Power (1W Total)
  • Sensitivity up to -106 dBm
  • OFDMA
  • Compact Enclosure (135 grams)
  • Point-to-Point, Point-to-Multipoint, MESH
  • Master, Remote, Relay, MESH Modes
  • Single Connector for Power & Data
  • Serial & USB Ports
  • 10/100/1000 Ethernet
  • Port Forwarding, ACL, Firewall
  • Extended Temp (-40°C to +85°C)
  • Configurable via local console, telnet, web browser
  • Local/Remote firmware upgrades

Applications

  • Ethernet Wireless Extension
  • Wireless Telemetry
  • Wireless Video
  • Control Systems

Approvals (Pending)

  • FCC/IC
  • CE
  • MIC - Japan

1Module rated speeds.

pMDDL2460-ENC Images

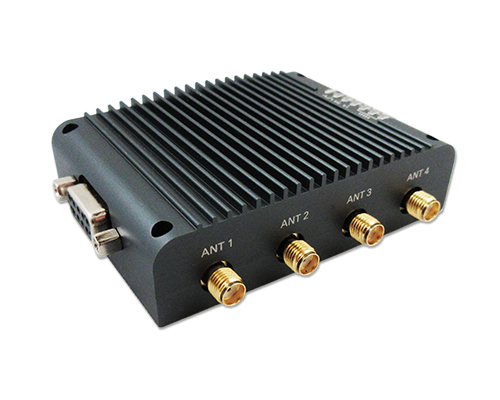

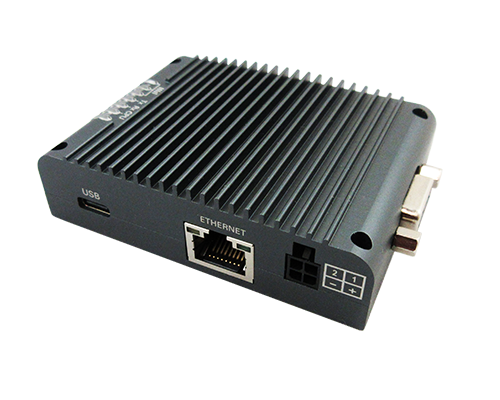

pMDDL2460-ENC
pMDDL2460-ENC
pMDDL2460-ENC
pMDDL2460-SWP
pMDDL2460-SWP
pMDDL2460-ENC
pMDDL2460
pMDDL2460
pMDDL2460 2X4 MIMO



Model P/N
pMDDL2460-OEM MHK187100
pMDDL2460-SWP MHK187170
pMDDL2460-ENC MHK187150
