pMDDL2460
pMDDL2460 | -SWP | -ENC | Accessories | Support

Miniature Dual Frequency 2.4 & 5-6 GHz OEM Digital Data Link

The pMDDL2460 is a miniature, 2.4 GHz and 5-6 GHz long range wireless modem. The pMDDL2460 delivers a OEM solution compatible with the Microhard pMDDL footprint. The modem features OFDMA using 2 Transmit and 4 Receive Antenna's. The pMDDL2460 is capable of long range wireless data transmission.

The miniature, lightweight and robust design allows the pMDDL2460 to be an ideal candidate for size sensitive applications. The high speed, long range capabilities of the pMDDL2460 allow for high quality wireless video and telemetry communications.

Features

  • Data Rates > 100 Mbps!
  • 2.4 & 5-6 GHz Software Selectable Operation
  • Selectable Channel Bandwidth
    (40|20|10|8|5|4 MHz)
  • 2X4 MIMO
  • 2x TX Antenna | 4x RX Antenna
  • Adjustable Output Power (1W Total)
  • Sensitivity up to -106 dBm
  • OFDMA
  • Extremely Small Footprint
  • Point-to-Point, Point-to-Multipoint, Mesh
  • Master, Remote, Relay Modes
  • Serial & USB Ports
  • Gigabit Ethernet Port
  • Port Forwarding, ACL, Firewall
  • Extended Temp (-40°C to +85°C)
  • Configurable via local console, telnet, web browser
  • Local/Remote firmware upgrades

Applications

  • Ethernet Wireless Extension
  • Wireless Telemetry
  • Wireless Video
  • Control Systems

Approvals (Pending)

  • FCC/IC
  • CE
  • MIC - Japan

pMDDL2460 Images

pMDDL2460 OEM
pMDDL2460 OEM
pMDDL2460 OEM Top
pMDDL2460 OEM
pMDDL2460 OEM

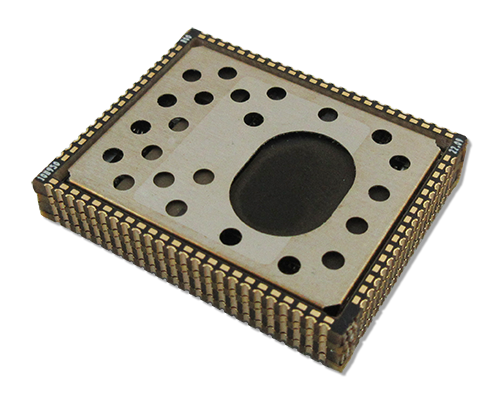

pMDDL2460 OEM Bottom
pMDDL2460
pMDDL2460

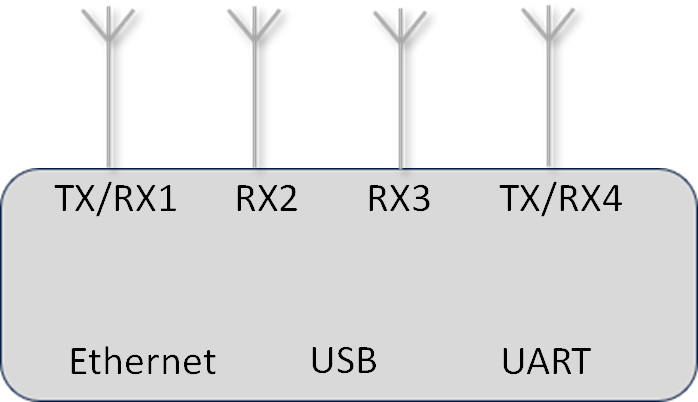

pMDDL2460 2X4 MIMO



Model P/N
pMDDL2460-OEM MHK187100
pMDDL2460-SWP MHK187170
pMDDL2460-ENC MHK187150
