Dragon-LTE-100-GL - OEM 4G/LTE Ethernet Gateway w/WIFI

The all new Dragon-LTE-100-GL provides a feature packed, compact OEM, industrial strength wireless IoT & M2M solution. Connect any device, wired or wireless, and provide remote cellular access using the Dragon-LTE.

The Dragon-LTE features a OEM design for tight system integration and design flexibility with Global Band Support, Dual Ethernet Ports and High Power 802.11b/g/n WIFI. With its integrated Firewall, IPSec VPN Tunneling and IP/MAC Access Control Lists, the Dragon-LTE provides a solution for any cellular application!

Features

  • Low Power Consumption
  • Fast 4G/LTE/HSPA+ Operation
    (DL:150Mbps UL:50Mbps)
  • Multi-Band Support for Global Use
  • HSPA/WCDMA/EDGE/GPRS Compatible
  • Robust OEM Design
  • 802.11b/g/n WIFI
  • Dual 10/100 Ethernet Ports
  • PoE (WAN)
  • USB Direct Connect
  • Wide Operating Temp (-40C to +85C)
  • IP-Passthrough
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts
  • VPN, IPSec with IKE/ISAKMP
  • Multiple Tunnel Support (16)
  • L2TP, Site to Site Tunneling
  • Enhanced Port Forwarding, DMZ
  • Firewall with ACL Security
  • Microhard NMS Integration
  • Local/Remote firmware upgradable

Applications

  • Remote Access, VPN
  • SCADA (PLCs, RTUs, Modbus)
  • Cellular Backbone
  • Mobile WIFI Access
  • Point of Sale Systems
  • Mobile Internet Access
  • Electric, Oil & Gas Utilities/Metering

Approvals

  • FCC, Industry Canada
  • PTCRB
  • Carrier Specific Approvals:
    Verizon

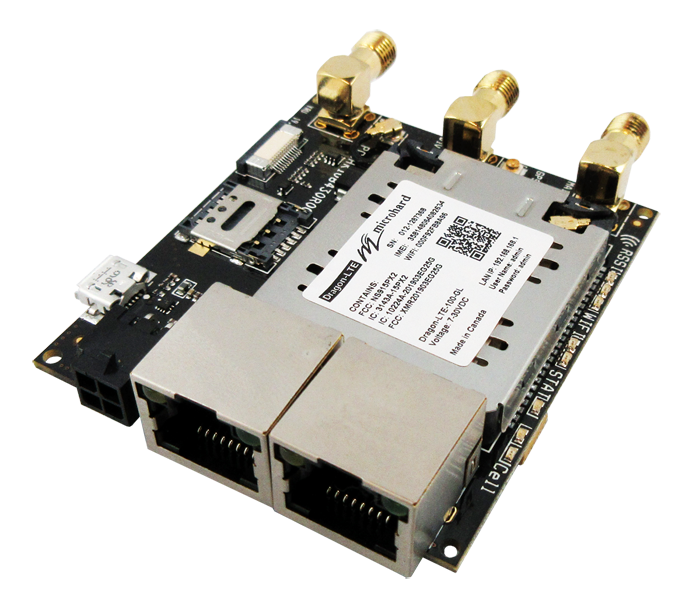

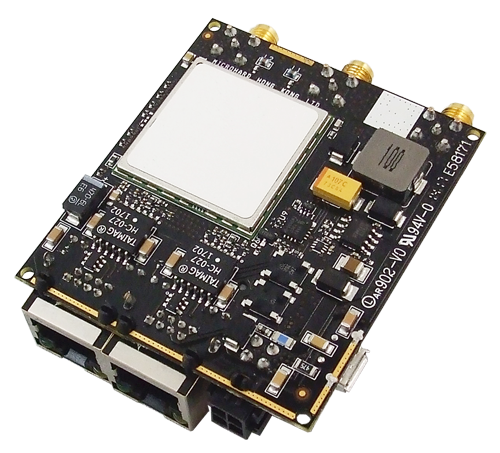

Dragon-LTE-100-GL Images

Dragon-LTE-100-GL
Dragon-LTE-100-GL
Dragon-LTE-100-GL
Dragon-LTE-100-GL
Dragon-LTE-100-GL
Dragon-LTE-100-GL



Order Information

Model P/N
Dragon-LTE-100-GL CA-MHK100573
