LTE Advanced Carrier Aggregation 600Mbps CAT12 Gateway w/802.11ac

Equipped with LTE Advanced Carrier Aggregation Technology!

The BulletPlusAC-CAT12 is a industrial strength cellular solution using LTE Advanced Carrier Aggregation technology for critical data applications. The BulletPlusAC provides fast CAT12 CA LTE connections with up to 600 Mbps for today's data intensive applications.

The BulletPlusAC-CAT12 features 4x Gigabit LAN Ports, 2x Independent Gigabit WAN Ports, Dual SIM w/Failover, 802.11ac WiFi, Dual RS232 Serial Data, 2x Programmable I/O and Standalone GPS.


  • Ultra Fast CAT12 LTE Operation
  • Up to 600 Mbps Downlink
    150 Mbps Uplink
  • Enterprise Class 802.11ac WiFi(Up to 1.3 Gbps)
  • Dual SIM w/Failover
  • 6x 10/100/1000 Ethernet Ports
  • 2x RS232/485 Serial Data/Console Ports
  • Programmable I/O
  • IPv6 & IPv4 Support
  • Enhanced Port Forwarding, DMZ
  • Wide Operating Temp (-40°C to +85°C)
  • Standalone GPS
  • IP-Passthrough
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts
  • IPSec w/IKEv1 & IKEv2 support
  • Multiple Tunnel Support (16)
  • L2TP, Site to Site Tunneling
  • GRE Tunnel Support
  • Firewall with ACL Security
  • Microhard NMS Integration
  • Local/Remote firmware upgradable


  • IP/Ethernet Wireless Extension
  • Legacy Networks/Device Migration
  • Remote Access, VPN
  • SCADA (PLCs, RTUs, Modbus)
  • Cellular Backbone
  • Mobile WIFI Access
  • Point of Sale Systems
  • Mobile Internet Access
  • Electric, Oil & Gas Utilities/Metering


  • FCC, IC
  • UL HazLoc (C1D2)
  • Carrier Specific Approvals:
    Verizon, Bell, FirstNet (AT&T)

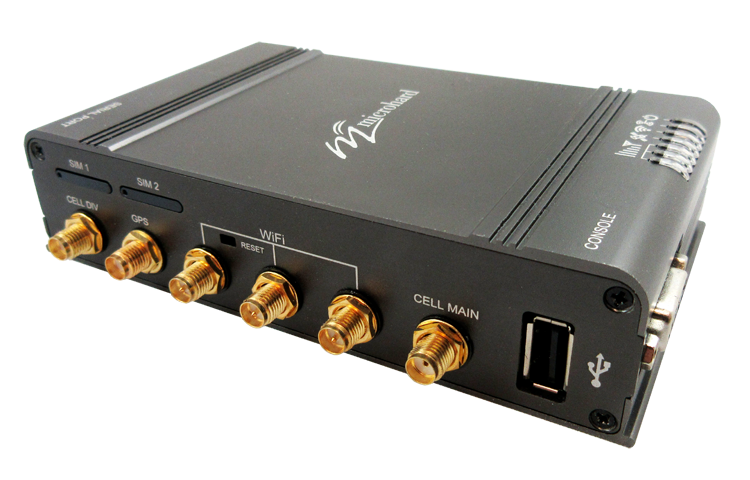

BulletPlusAC-CAT12 Images


Order Information

Model Part Number
BulletPlusAC-CAT12 CA-MHK117780
BulletPlusAC-CAT12 w/Kit CA-MHK117782
