EV-LTE-WIFI

EV Charger Comms Box - Cellular / WIFI Ethernet Gateway

The EV-LTE-WIFI is a outdoor solution with an integrated 110-240VAC power supply and equipped with a low profile 3-in-1 LTE/WIFI/GPS Antenna. The LTE connection provides robust 150 Mbps CAT4 LTE and features 10/100 Ethernet, High Power, Enterprise class 802.11 WIFI, and powerful VPN/GRE Tunneling Capabilities.

Features

  • 110-240 VAC Input Power
  • Outdoor Enclosure
  • 3-in-1 LTE/WIFI/GPS Antenna
  • Robust CAT4 LTE Operation
  • Global Band Support
  • Up to 150 Mbps DL / 50 Mbps UL
  • 10/100 Ethernet
  • Enterprise Class WiFi
    (more than 200 clients)
  • High Power 1W WiFi (Long Range)
  • Enhanced Security & Firewall
  • Wide Operating Temp (-40°C to +85°C)
  • Monthly/Daily Usage Alerts (SMS/Email)
  • VPN, IPSec with IKE/ISAKMP
  • L2TP, Open VPN, Site-to-Site Tunneling
  • GRE Tunnel Support
  • Configurable via SSH, HTTPS Web Interface
  • Microhard NMS2 & Microhard IoT Portal Integration

Applications

  • EV Charging Stations
  • Mobile Hotspot
  • Mobile Internet
  • Remote Work Access
  • Point of Sale Systems

Approvals

  • FCC, IC
  • PTCRB
  • RoHS
  • Support:
    Verizon, AT&T, Tmobile, Bell, Telus, Rogers

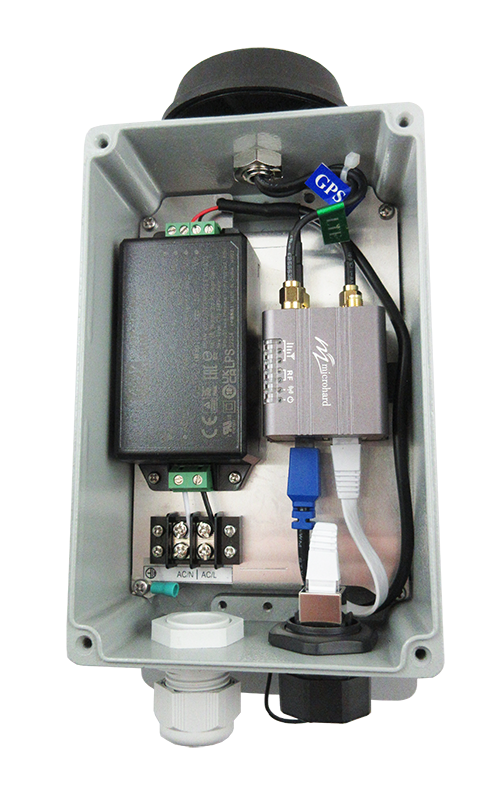

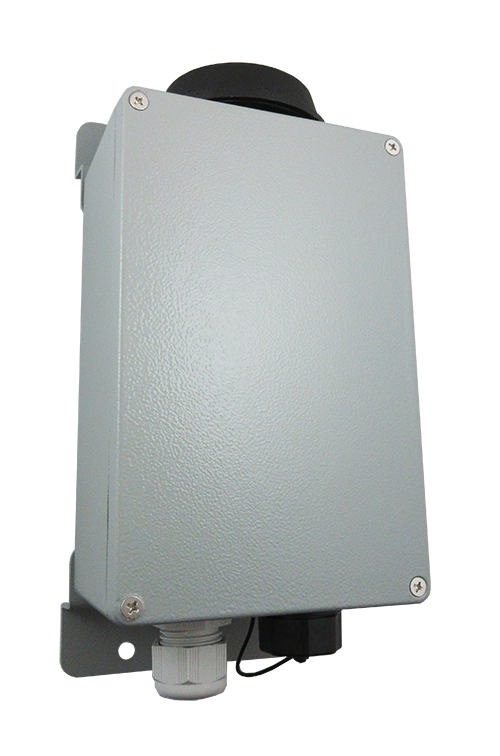

EV-LTE-WIFI Images

EV-LTE-WIFI
EV-LTE-WIFI
EV-LTE-WIFI
EV-LTE-WIFI
EV-LTE-WIFI
EV-LTE-WIFI
