fDDL2460
fDDL2460 | -SWP | -ENC | Accessories | Support

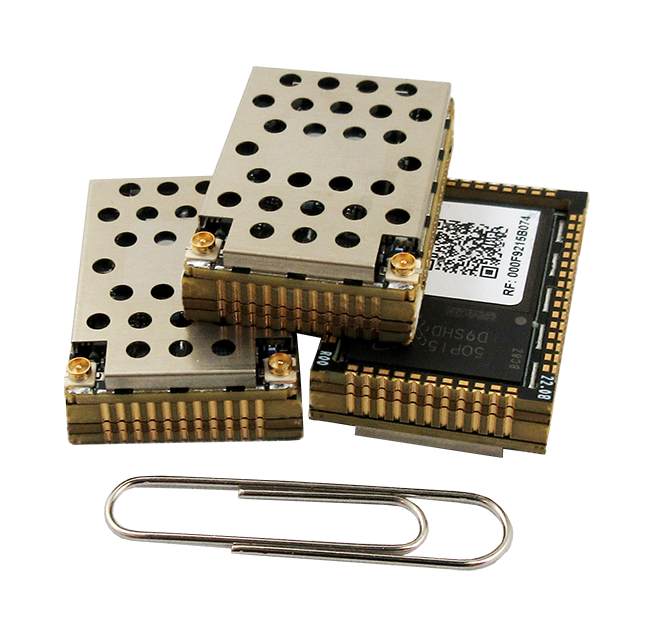

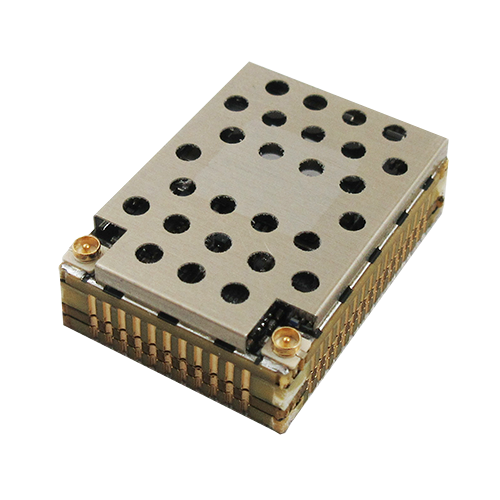

Miniature MIMO Dual Frequency 2.4 & 5-6 GHz OEM Digital Data Link

The fDDL2460 is a miniature, 2.4 GHz and 5-6 GHz long range wireless modem. The fDDL2460 delivers a OEM solution compatible with the Microhard Femto footprint. The modem features OFDMA using 2 Transmit and 2 Receive Antenna's. The fDDL2460 is capable of long range wireless data transmission.

The miniature, lightweight and robust design allows the fDDL2460 to be an ideal candidate for size sensitive applications. The high speed, long range capabilities of the pMDDL2460 allow for high quality wireless video and telemetry communications.

Features

  • Data Rates > 100 Mbps!
  • 2.4 & 5-6 GHz Software Selectable Operation
  • Selectable Channel Bandwidth
    (40|20|10|8|5|4 MHz)

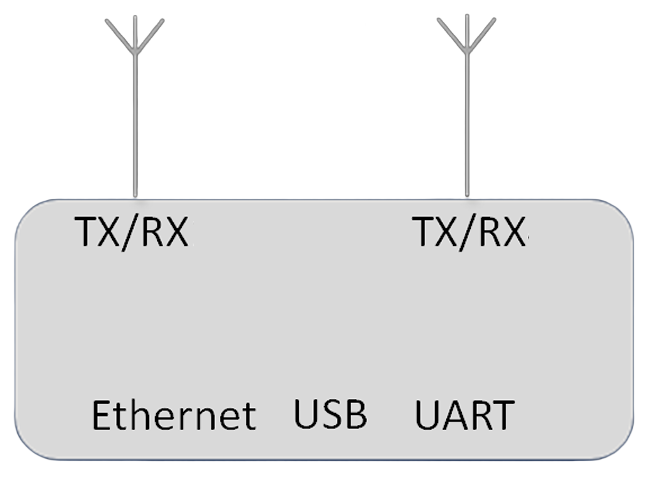

  • 2X2 MIMO
    2x TX Antenna | 2x RX Antenna
  • Adjustable Output Power (1W Total)
  • Sensitivity up to -104 dBm
  • OFDMA
  • Extremely Small Footprint
    0.75" x 1.05" x 0.30"
  • Only 6 grams!
  • Point-to-Point, Point-to-Multipoint, Mesh
  • Master, Remote, Relay Modes
  • Serial & USB Ports
  • Gigabit Ethernet Port
  • Port Forwarding, ACL, Firewall
  • Extended Temp (-40°C to +85°C)
  • Configurable via local console, telnet, web browser
  • Local/Remote firmware upgrades

Applications

  • Ethernet Wireless Extension
  • Wireless Telemetry
  • Wireless Video
  • Control Systems

  • NDAA Compliant

Approvals (Pending)

  • FCC/IC
  • CE
