IPn5G-RC

5G RedCap Cellular Dual Ethernet, Serial, USB Gateway

Low Cost 5G Solution!

The IPn5G-RC is a high-performance, industrial-grade, multi-network router designed for both fixed and mobile applications. This rugged 5G RedCap router/gateway delivers download speeds of up to 223 Mbps1 and upload speeds of up to 123 Mbps1, making it ideal for medium speed, large capacity data needs!

The IPn5G-RC provides features such as Global Band Support with 5G RedCap with LTE CAT4 Fallback, Dual Gigabit Ethernet Ports, Three Serial ports, 8x Digital I/O and Dual SIM + eSIM support. Offering enhanced, “Secure Communication” with its integrated Firewall, IPSec VPN Tunneling, IP/MAC Access Control Lists, the IPn5G-RC really can do everything!

Features

  • New Product Fast 5G RedCap - Future Proof
  • 5G SA Sub-6: DL 223 Mbps | UL 123 Mbps 1
  • LTE(CAT4) Fallback: DL 195 Mbps | UL 105 Mbps
  • Dual SIM + eSIM
  • Global Cellular Compatibility
  • Dual 10/100/1000 Ethernet Ports (LAN/WAN)
  • 1x RS485 Serial Data Port
  • 2x Console/Data Serial Ports (RS232)
  • 8x Programmable I/O
  • Enhanced Port Forwarding, DMZ
  • Wide Operating Temp (-40°C to +85°C)
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts (SMS/Email)
  • IPSec w/IKEv1 & IKEv2 support
  • Multiple Tunnel Support (16)
  • L2TP, Open VPN, Site-to-Site Tunneling
  • GRE Tunnel Support
  • MQTT Support
  • LWM2M
  • Firewall with ACL Security
  • Configurable via SSH, HTTPS Web Interface
  • Integrated GPS
  • Microhard NMS2 & IoT Portal Integration
  • Local/Remote firmware upgradable

Applications

  • IP/Ethernet Wireless Extension
  • Legacy Networks/Device Migration
  • Remote Access, VPN
  • Cellular Backbone
  • Point of Sale Systems
  • SCADA Systems
  • Electric, Oil & Gas Utilities/Metering

Approvals

  • FCC, ISED Canada (IC)

1Chipset rated speeds.

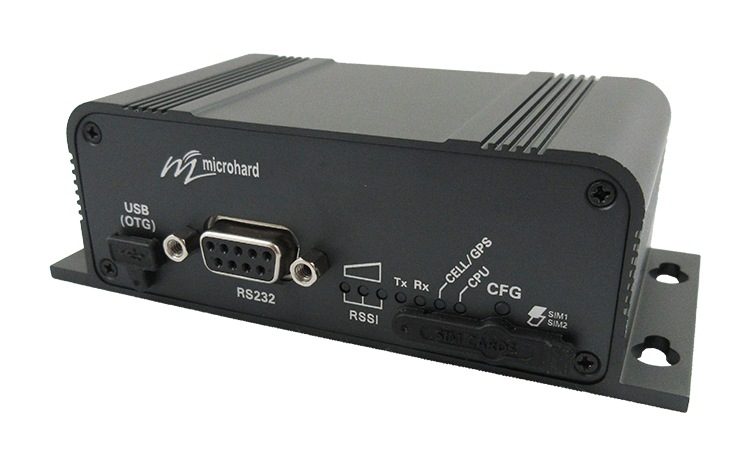

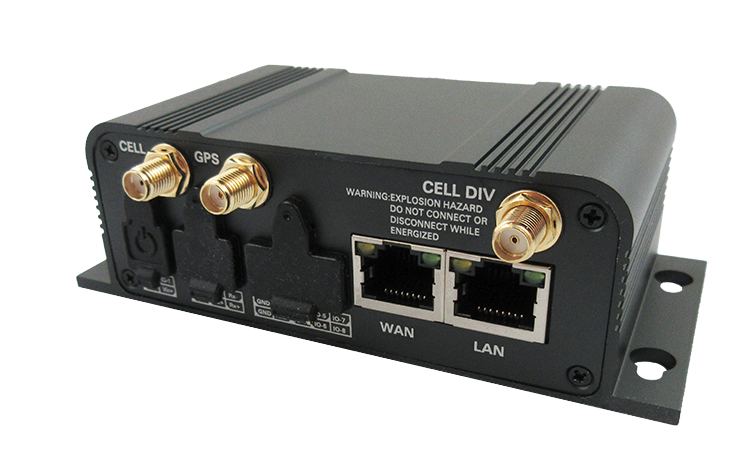

IPn5G-RC Images

IPn5G-RC
IPn5G-RC
IPn5G-RC
IPn5G-RC
IPn5G-RC
IPn5G-RC
