Nano5G-SWP

Miniature High Performance 5G Gateway w/Concurrent Dual Band WiFi6

Nano5G-SWP is a compact, high-performance, industrial-grade multi-network router designed for both fixed and mobile deployments. Engineered for rugged environments, this 5G router/gateway is powered by a Qualcomm Snapdragon chipset and delivers blazing-fast speeds of up to 3.4 Gbps download1 and 900 Mbps upload1, making it ideal for bandwidth-intensive applications.

The Nano5G-SWP features Gigabit Ethernet, Dual SIM (External Nano SIM + eSIM), Concurrent Dual Band WiFi 6, GPS and 2x Programmable I/O. Its miniature footprint enables installation in tight spaces, making it a perfect fit for surveillance, covert operations, and other space-constrained scenarios.

Features

  • New Product Ultra Fast 5G Operation
  • 5G SA Sub-6: DL 2.4 Gbps | UL 900 Mbps 1
  • 5G NSA Sub-6: DL 3.4 Gbps | UL 550 Mbps 1
  • LTE(CAT19) Fallback: DL 1.6 Gbps | UL 200 Mbps
  • Dual SIM (External Nano SIM + eSIM) w/Failover
  • Global Cellular Compatibility
  • Gigabit Ethernet
  • Concurrent Dual Band WiFi 6
  • 2.4 + 5 GHz 802.11AX WiFi
  • Miniature Size (1.75 x 3.15 x 0.95")
  • Programmable I/O
  • Wide Operating Temp (-40°C to +85°C)
  • Enhanced Port Forwarding, DMZ
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts (SMS/Email)
  • IPSec w/IKEv1 & IKEv2 support
  • L2TP, Open VPN, Site-to-Site Tunneling
  • GRE Tunnel Support
  • MQTT Support
  • Firewall with ACL Security
  • Configurable via SSH, HTTPS Web Interface
  • Integrated GPS
  • Microhard NMS2 & IoT Portal Integration
  • Local/Remote firmware upgradable

Applications

  • IP/Ethernet Wireless Extension
  • Legacy Networks/Device Migration
  • Remote Access, VPN
  • Surveillance
  • Point of Sale Systems
  • Mobile Internet Access

Approvals

  • FCC, ISED Canada (IC)

1Chipset rated speeds.

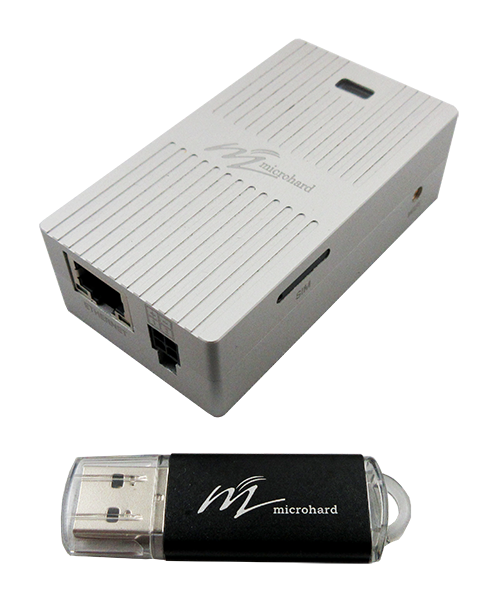

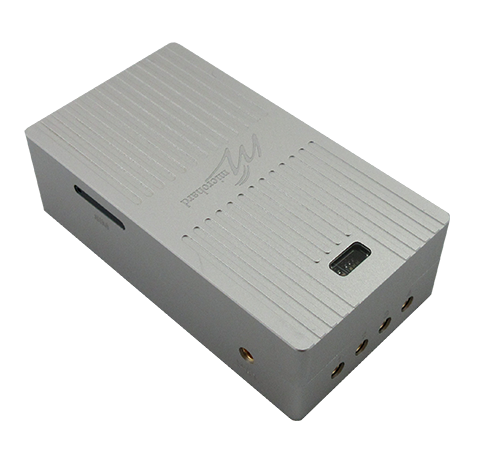

Nano5G-SWP Images

Nano5G-SWP
Nano5G-SWP
Nano5G-SWP
Nano5G-SWP
Nano5G-SWP
Nano5G-SWP



Order Information

Model P/N
Nano5G-SWP MHK120510
