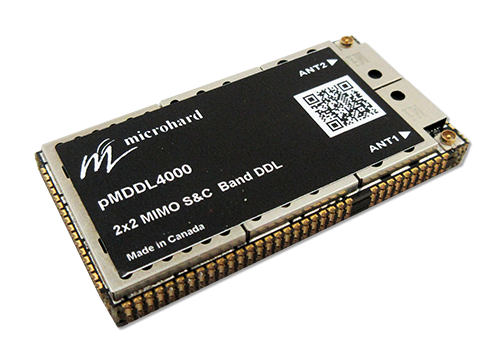

pMDDL4000

Wireless 3.2 to 5.0 GHz S + C Band Digital Data Link

The all new pMDDL4000 Digital Data Link is a miniature OEM, high power, 2X2 MIMO S Band + C Band wireless OEM solution. This robust digital data link provides a robust and secure link in software-seletable frequency between 3.2 and 5.0 GHz. The pMDDL4000 uses Maximal Ratio Combining (MRC), Maximal Likelihood (ML) decoding and Low-Density Parity Check (LDPC) to achieve robust RF performance.

New Dynamic Frequency Selection, Frequency Hopping & Independent Uplink/Downlink Frequency delivers robust interference and antijam immunity!

The miniature, lightweight and robust design allows the pMDDL4000 to be an ideal candidate for size sensitive applications. The high speed, long range capabilities of the pMDDL4000 allow for high quality wireless video and telemetry communications.

Features

  • Separated TX/RX Frequency
  • Data Rates > 40 Mbps!
  • 3.2-5.0 GHz Software Selectable Operation
  • Independent Uplink & Downlink Frequency
  • Dynamic Frequency Selection + Frequency Hopping
  • Selectable Channel Bandwidth (18|8|4|2 MHz)
  • 2X2 MIMO
  • Adjustable Output Power (2W Total)
  • Sensitivity up to -102.5 dBm
  • Maximal Ratio Combining (MRC), Maximal Likelihood (ML) decoding
  • Low-Density Parity Check (LDPC)
  • Extremely Small Footprint
  • Point-to-Point, Point-to-Multipoint, Mesh
  • MANET Mesh / Advanced Mesh
  • Master, Remote, Relay Modes
  • Serial & USB Ports
  • Dual Ethernet Ports (LAN/WAN)
  • Port Forwarding, ACL, Firewall
  • Extended Temp (-40°C to +85°C)
  • 256-bit AES Encryption
  • Configurable via local console, telnet, web browser
  • Local/Remote firmware upgrades

Applications

  • Ethernet Wireless Extension
  • Wireless Telemetry
  • Wireless Video
  • Control Systems

Approvals/Compliance

  • Available only to Qualified Customers under NDA



Model P/N
pMDDL4000 MHK187200
pMDDL4000-SWP MHK187270
pMDDL4000-ENC MHK187250
