Active GPS, 2x LTE (Main/Div), WIFI Antenna

This multifunctional antenna provides and all-in-one solution for applications that use GPS, LTE and WIFI. This antenna features dual LTE connections for main and diversity connections, a high gain active GPS antenna, as well as an integrated 2.4GHz WIFI antenna.

Features

  • Multifunction GPS, LTE & WIFI Antenna
  • LTE Dual Band: 700-960 MHz/1700-2700 MHz
  • Dual LTE(Main/Div) Connections
  • LTE: 1-4 dBi Gain
  • Active GPS: 1575 MHz, 28dBi Gain
  • WIFI: 2400 - 2500 MHz, 3dBi Gain
  • Omnidirectional
  • 50 Ohm Output Impedance
  • Wide Operating Temp (-40C to +85C)
  • Low Profile Design

Images

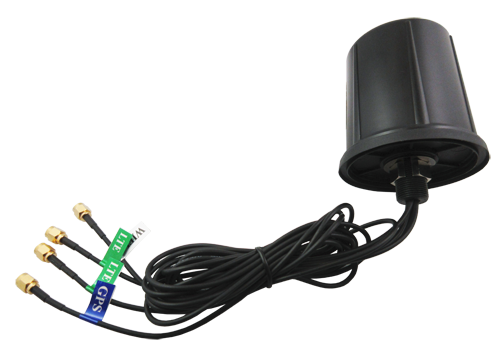

Microhard: GPS + 2xLTE + WIFI Antenna

Microhard: GPS + 2xLTE + WIFI Antenna
